Heavy Duty Mesh

Heavy Duty Mesh

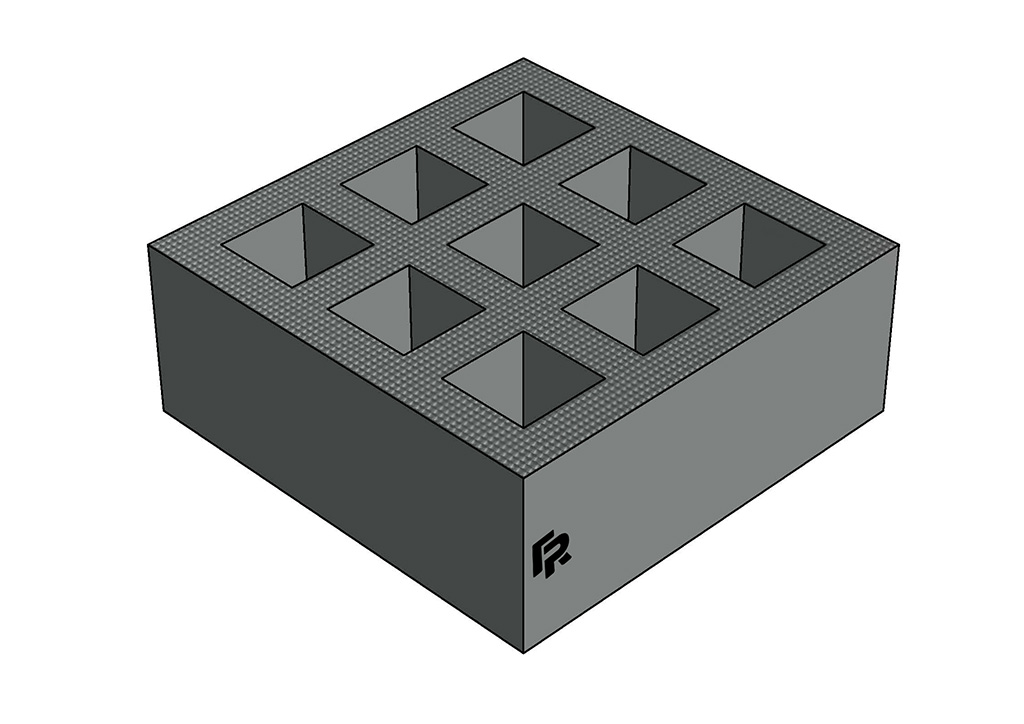

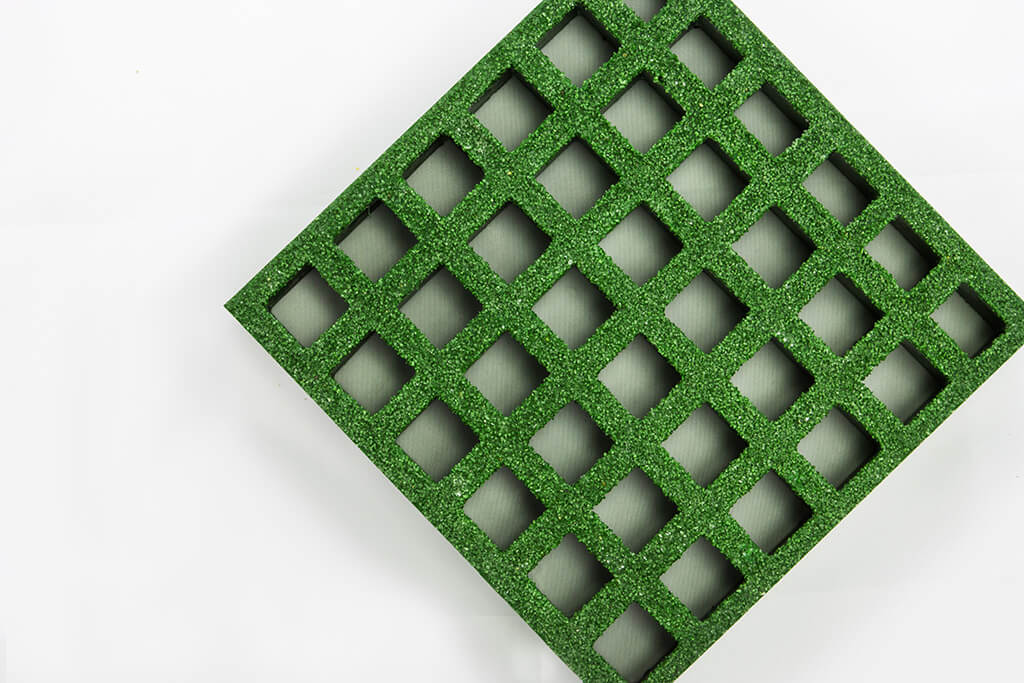

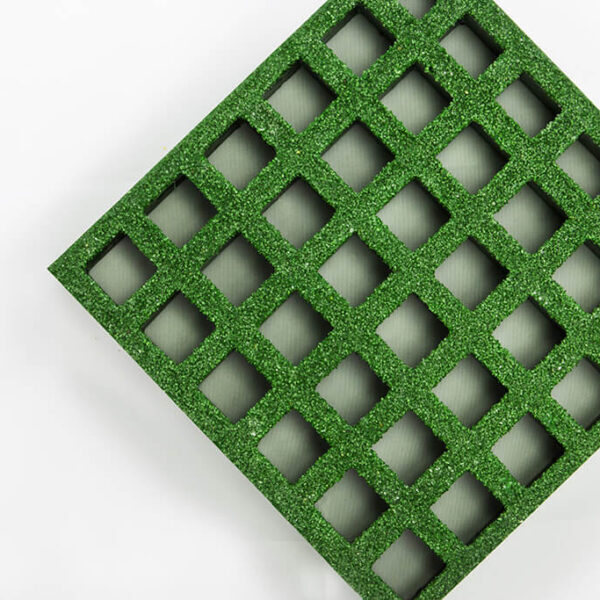

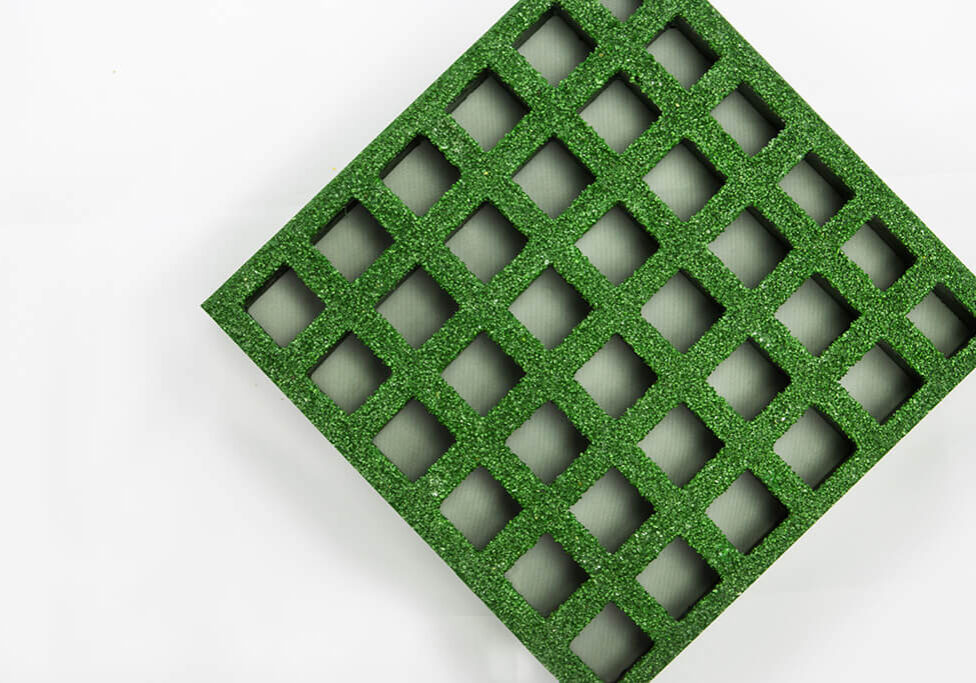

Our FRP Heavy Duty Mesh Grating is ideal for applications that require additional load capacity. With a 50 mm thickness, it is suitable for drain covers, high-traffic areas, and loading bays in industrial and commercial applications. It is durable, low maintenance, easy to install, and provides resistance to slips, fire, and corrosion.

Talk to us About Your Project Ideas!


All credit card transactions are safe and secure with Windcave.

Why Choose Us

To ensure we deliver a consistently excellent product and service, we’ve put our Heavy Duty Mesh to the test.

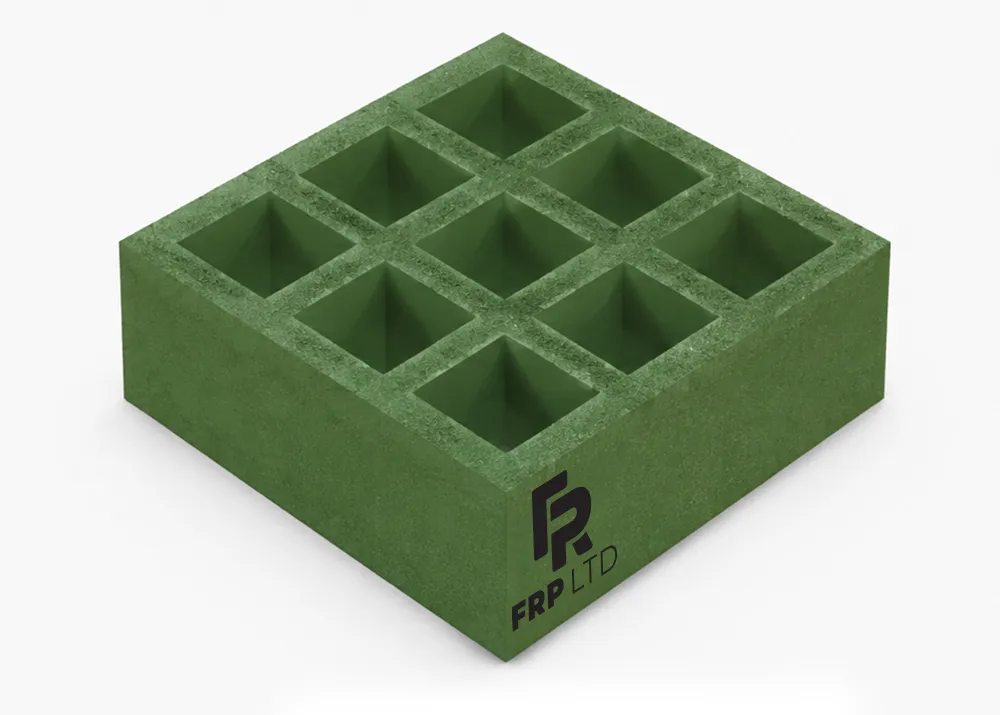

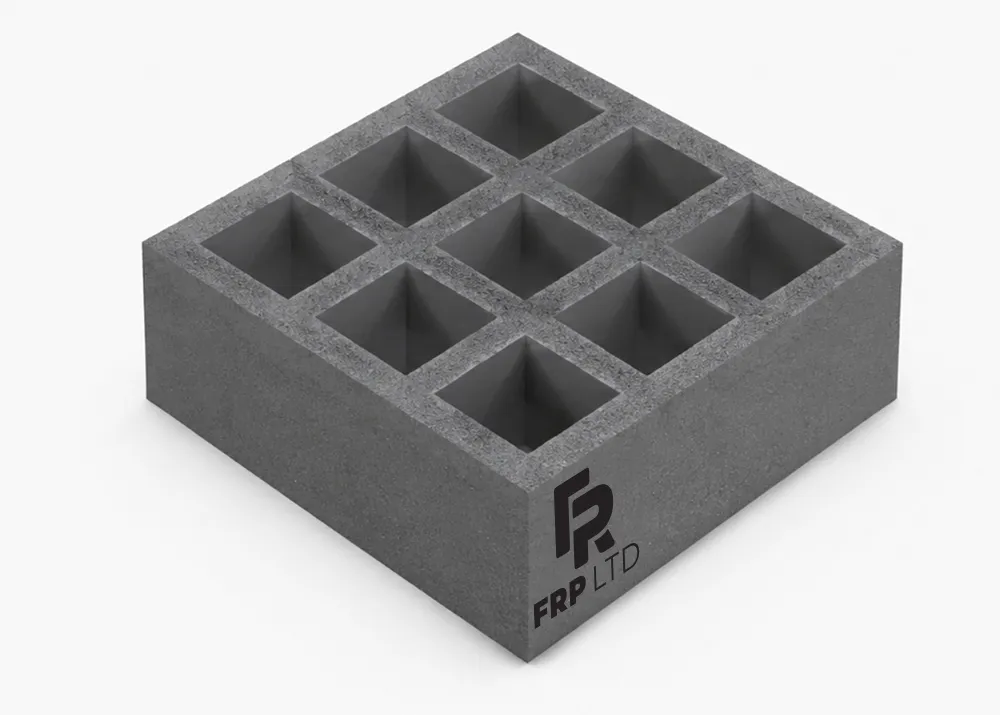

Available Colours

The colour range shown is an artist impression only, actual colours may vary as per the RAL colour chart

Heavy Duty Mesh Sizes

Load bar spacing: 38 x 38 mm (26 x 26 mm aperture)
50 mm depth
Dimensions: 3665 (L) x 1226 (W)

Resin Types

Isophthalic polyester (ISO) – general purpose grade resin suitable for minimal contact with harsh chemicals
Vinyl Ester (VE) –superior grade resin formulated to withstand frequent contact with harsh chemicals

Grit Surfaces

Medium (general grade) grit surface available. Our grating products are finished with VE and a silicon carbide grit surface system for optimum adhesion and durability.

Fine (barefoot friendly) and coarse (industrial) grit gradients are possible upon request, please contact us for more information

Ancillary Products

We have a range of fixing clips and fasteners to suit various applications and installation requirements, made from 316 stainless steel.
316 stainless steel is resistant to chemicals and corrosion, and does not need surface protection.
