Cover Top

Cover Top

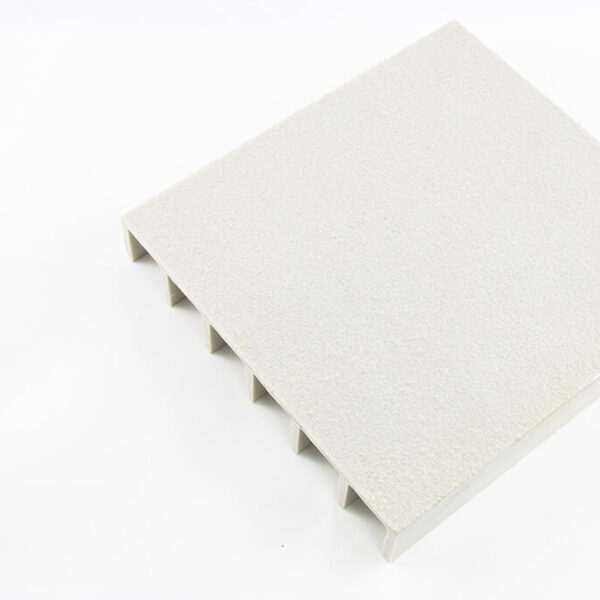

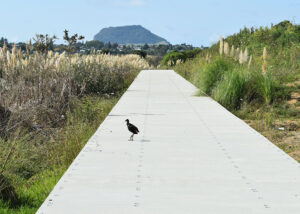

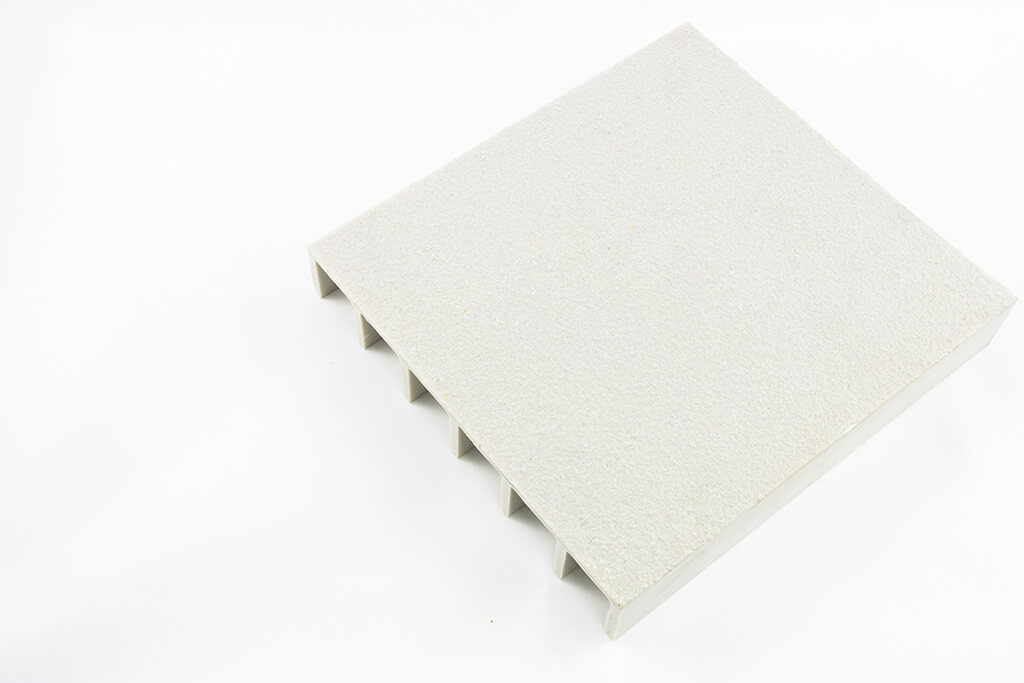

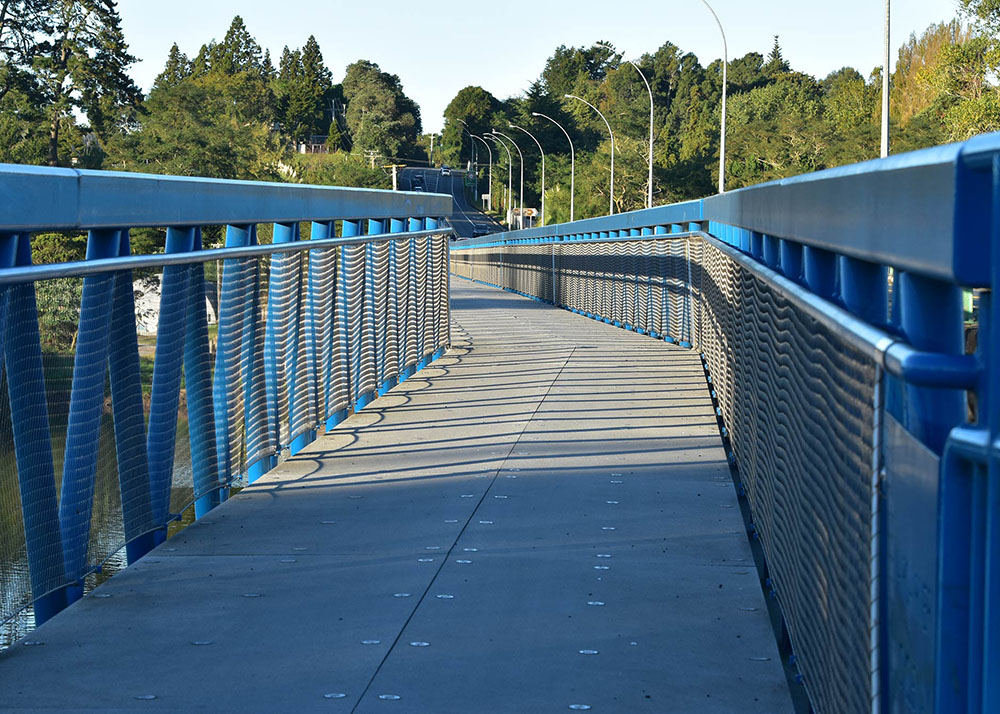

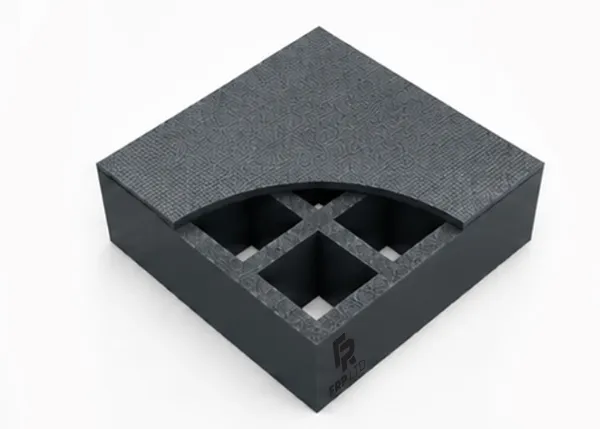

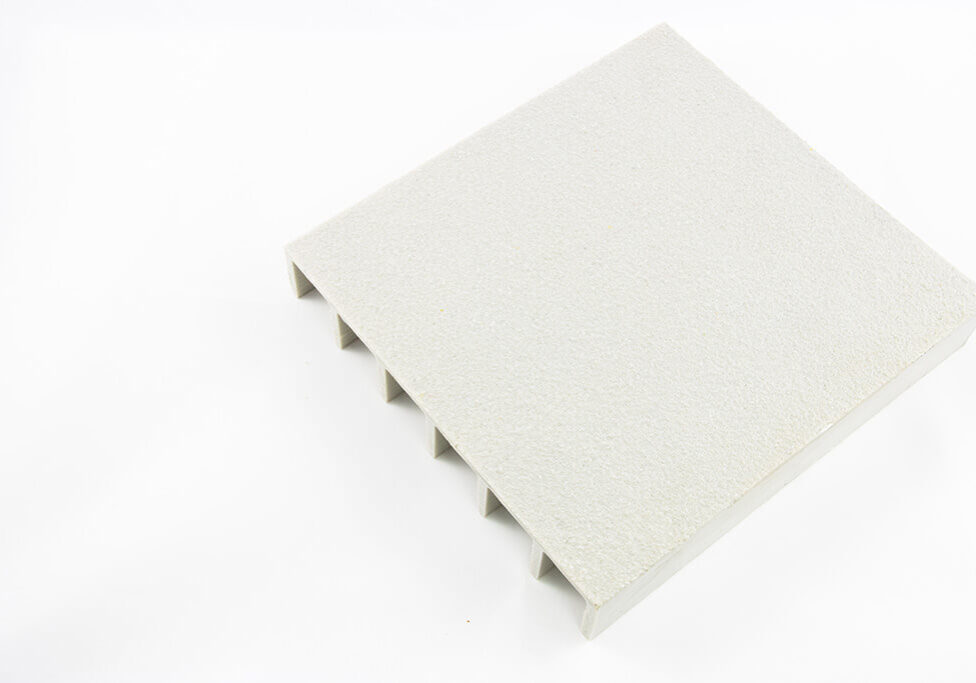

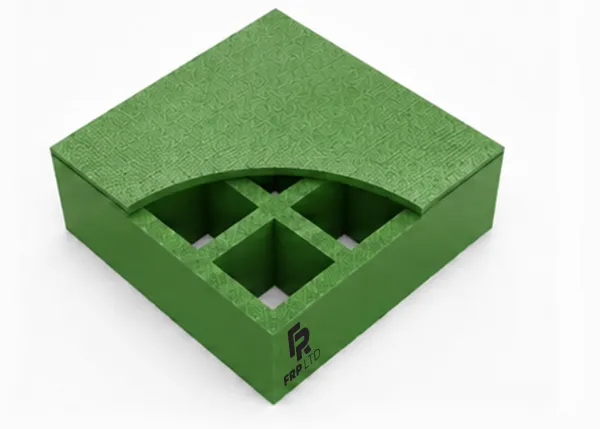

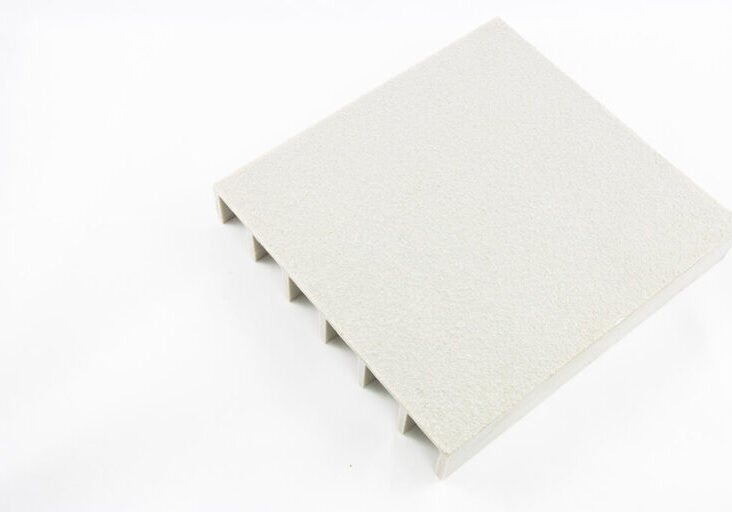

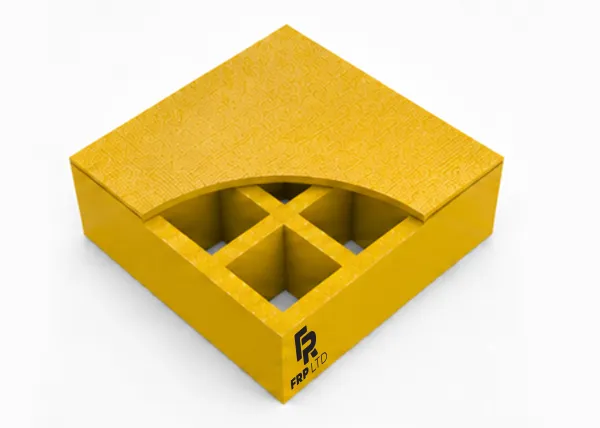

Our FRP Cover Top Grating is ideal for applications that require an enclosed top surface. With a 5 mm top surface adhered to our Regular Mesh Grating, our Cover Top is suitable for bridge decking, boardwalks, shared pathways, cycleways, and trench covers. It is durable, low maintenance, easy to install, and highly resistant to fire, slips, and corrosion.

We're Here to Help, Give us a Call Today!

Why Choose Us

We are New Zealand family-owned and operated, with plenty of stock on-site from our premises in the Bay of Plenty. We provide an in-house cutting service, with our workshop fully equipped with sophisticated cutting processes and fabrication techniques. We ensure our products adhere to NZ standards; please enquire for a copy of the relevant data specs. Our team is always ready to provide technical support and design recommendations. Non-standard sizes and finishes are available.

  • VOC-Free Pigment
    Its colour pigmentation is free from volatile organic compounds
  • Fire Rating
    All tests are carried out according to ISO 9239:1:2010
  • Asbestos Compliance
    Our Cover Top meets the standard that tests for traces of asbestos, adhering to AS 4964-2004
  • Load Rating
    All tests are carried out under supervision according to AS/NZS 1170.0
  • Anti-Slip Rating
    Our Cover Top is slip resistant on pedestrian surface materials, meeting AS/NZS.4586:2004
  • Chemically Inactive
    Highly resistant to corrosion and will not leach into the environment

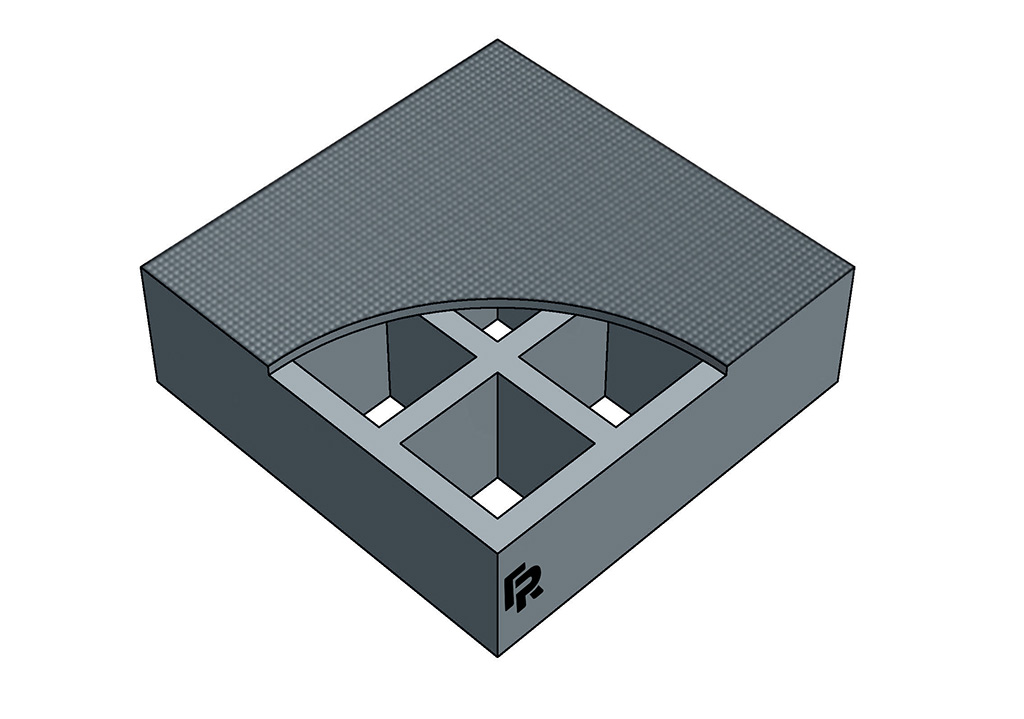

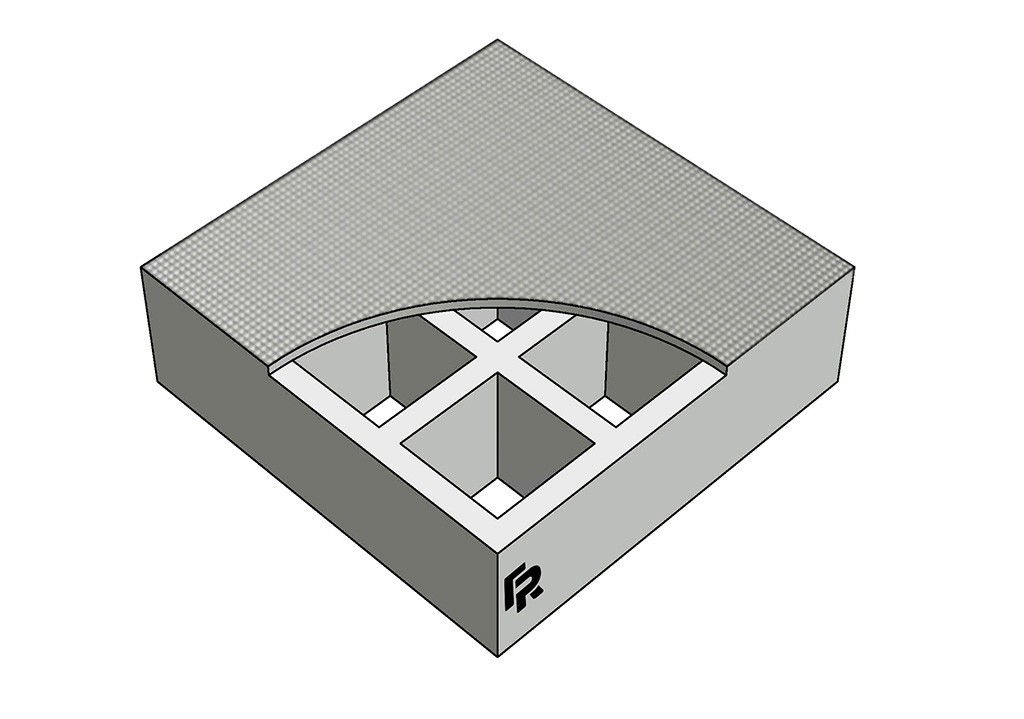

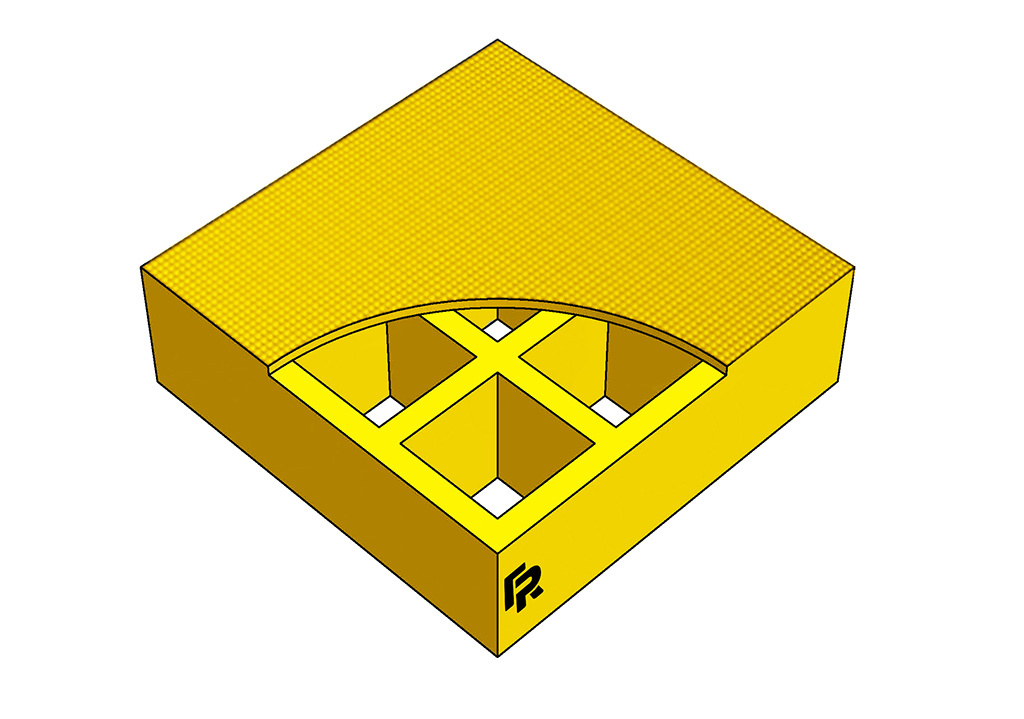

Available Colours

The colour range shown is an artist impression only, actual colours may vary as per the RAL colour chart

Download Application PDF

PDF opens in a new window

Cover Top Sizes

Load bar spacing: 38 x 38 mm
Top cover: 5 mm
25 and 38 mm depth
Dimensions: 3665 (L) x 1226 (W)
Overall thickness is the top cover and grating depth, e.g., 3 + 38 mm = 41 mm

Non-standard sizes available upon request, please contact us for more information

Resin Types

Isophthalic polyester (ISO) – general purpose grade resin suitable for minimal contact with harsh chemicals
Vinyl Ester (VE) –superior grade resin formulated to withstand frequent contact with harsh chemicals

Grit Surfaces

Medium (general grade) grit surface available. Our grating products are finished with VE and a silicon carbide grit surface system for optimum adhesion and durability.

Fine (barefoot friendly) and coarse (industrial) grit gradients are possible upon request, please contact us for more information

Ancillary Products

We have a range of fixing clips and fasteners to suit various applications and installation requirements, made from 316 stainless steel.
316 stainless steel is resistant to chemicals and corrosion, and does not need surface protection.
