Steel Grating Patterns

Discover the variety of steel mesh grating patterns available to meet your specific project needs. Our helpful team is ready to assist you with any questions you may have and help you choose the best grating pattern for your requirements.

  • We have Pattern A and Pattern C in stock, but we also supply Patterns B and D.
  • The load bars in Patterns A and B are both spaced at 30 mm centres. The twist rod is spaced at 100 mm centres for Pattern A and 50 mm for Pattern B.
  • Patterns C and D have load bars spaced at 40 mm centres. The twist rod is spaced at 100 mm centres for C Pattern and 50 mm centres for D Pattern.
Render of steel mesh grating patterns.

Related Steel Grating

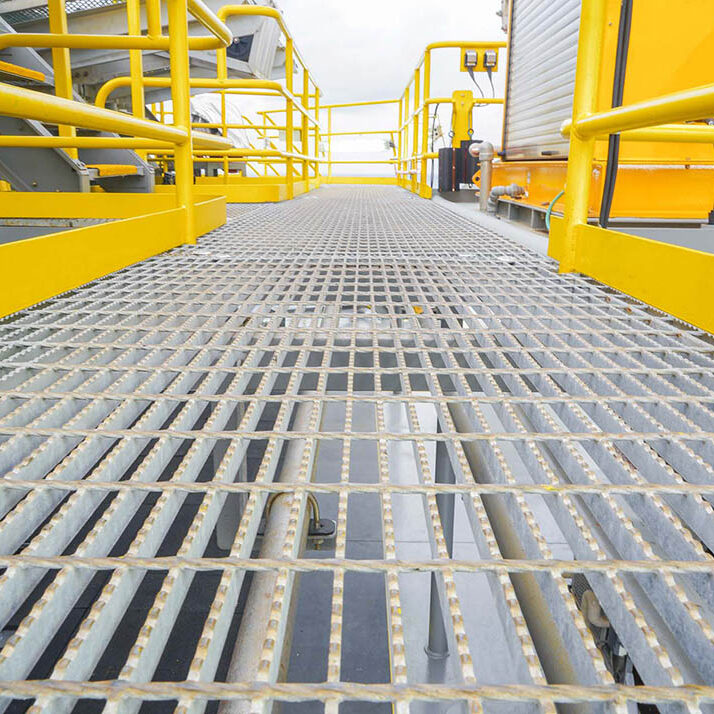

Steel grating walkway with yellow handrails in industrial setting.

Steel Grating System

For high-impact and heavy-load applications

render drawing of steel mesh grating.

Manufacturing Tolerances

For reliable performance and durability

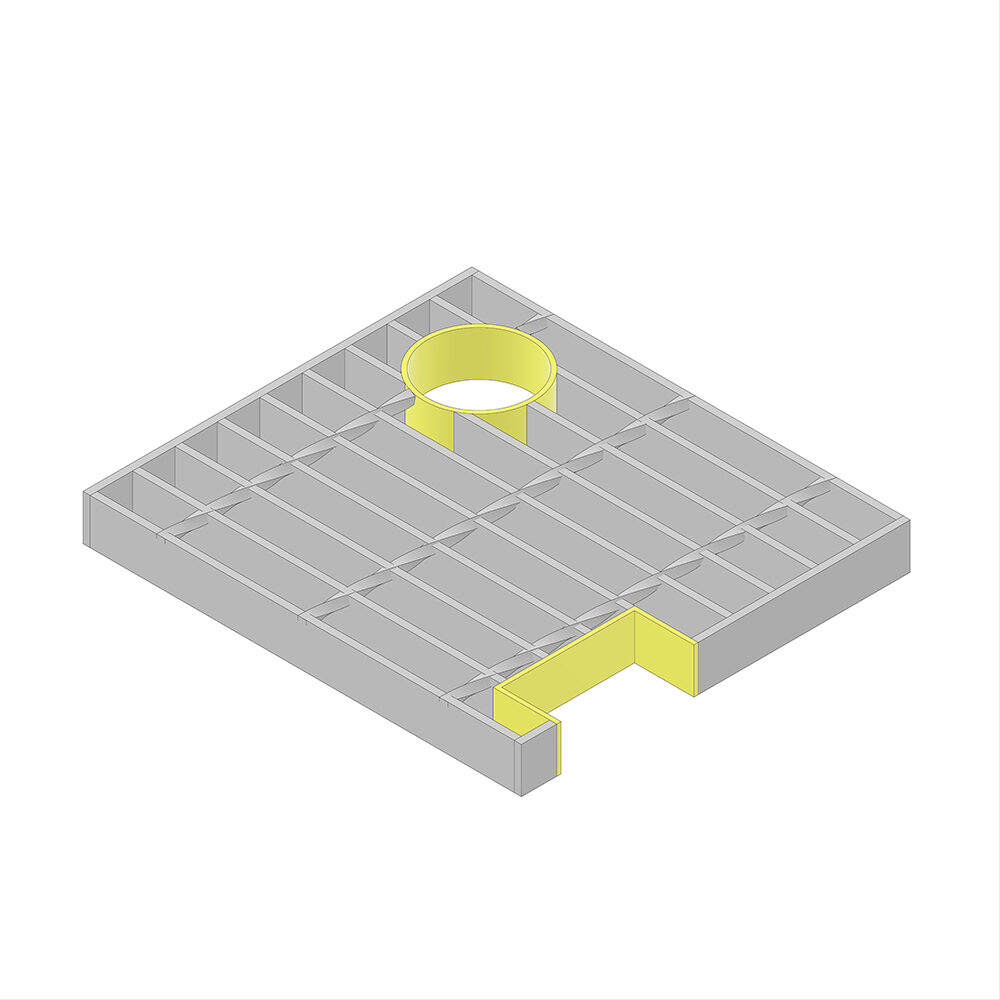

Render of steel mesh grating cutouts and penetrations.
