Manufacturing Tolerances

Our stringent manufacturing tolerances ensure that our steel grating meets the highest industry standards, providing reliable performance and durability for various applications. Whether you need grating for industrial flooring, walkways, or specialised projects, our team is here to help. With our expertise and commitment to excellence, we guarantee products that not only meet but exceed your expectations. Explore our manufacturing tolerances and discover how our steel mesh grating can provide the ideal solution for your project needs.

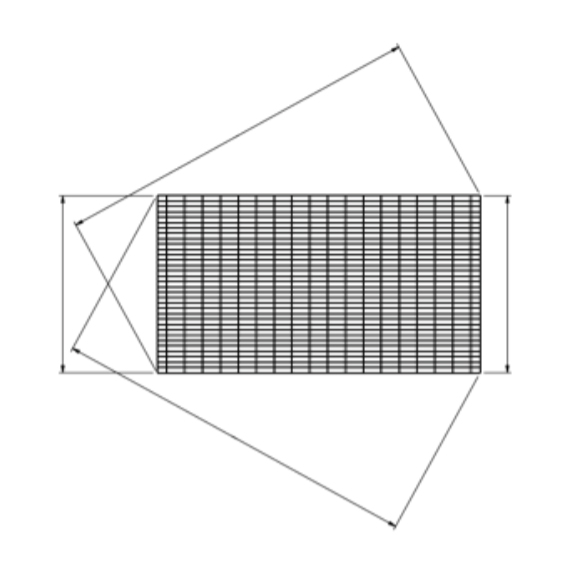

render drawing of steel mesh grating.
Steel Grating

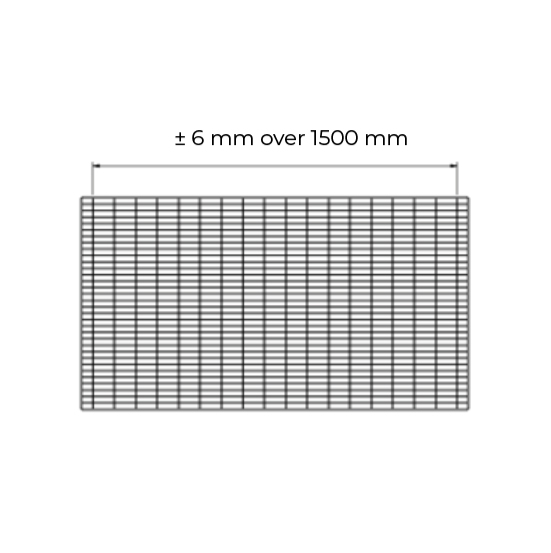

Render of steel mesh grating twist rod alignment.
Twist Rod Alignment and Spacing

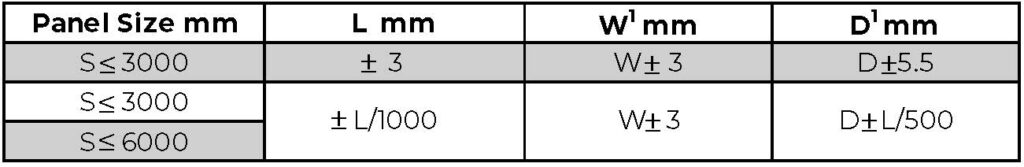

Table of load chart maufacturing tolerances for steel mesh grating.

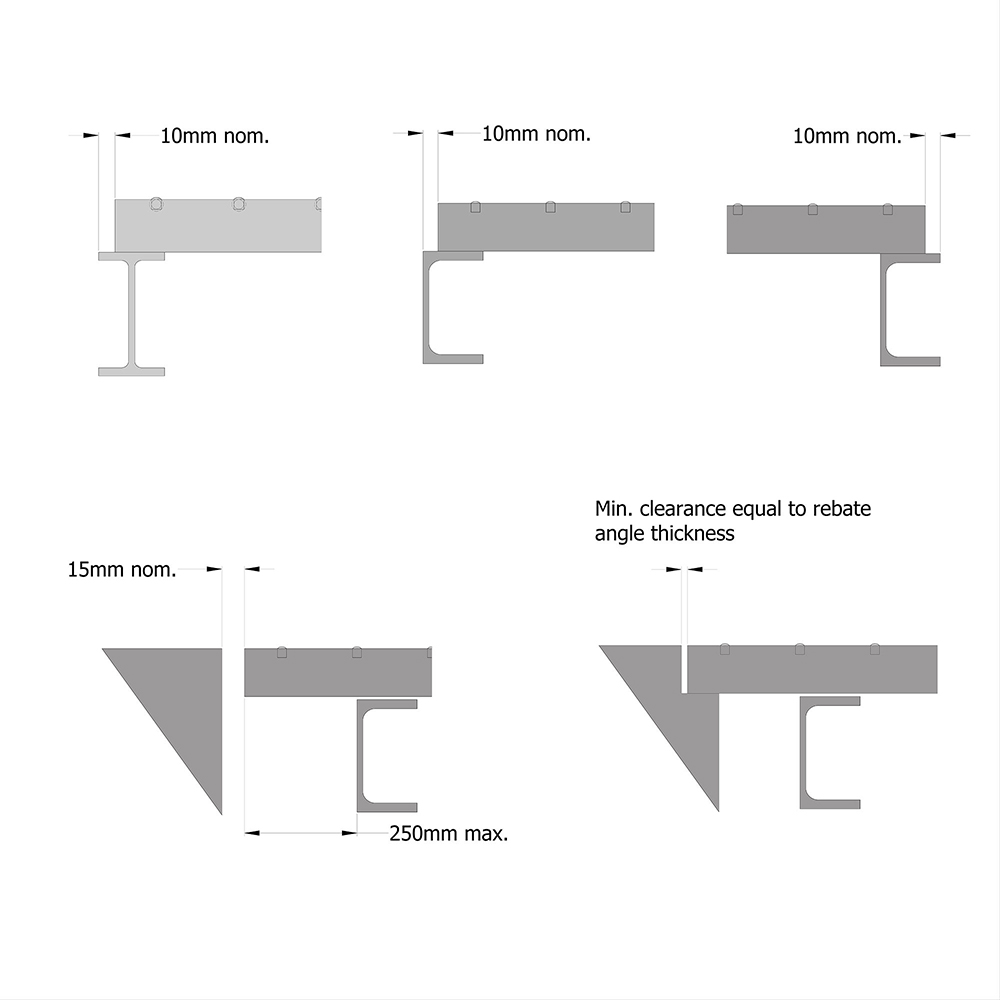

Render of steel mesh grating cantilever clearance.
Cantilever Clearance

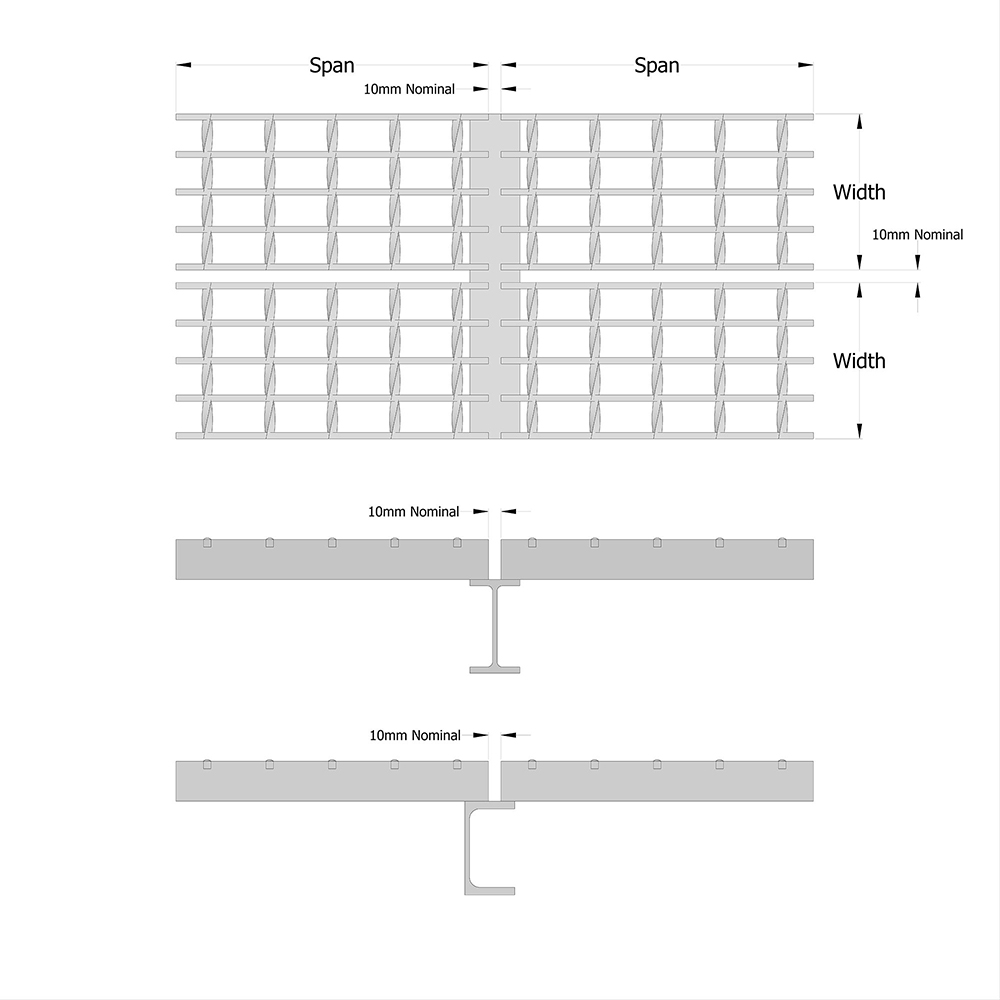

Render of steel mesh grating cantilever assembly.
Cantilever Assembly

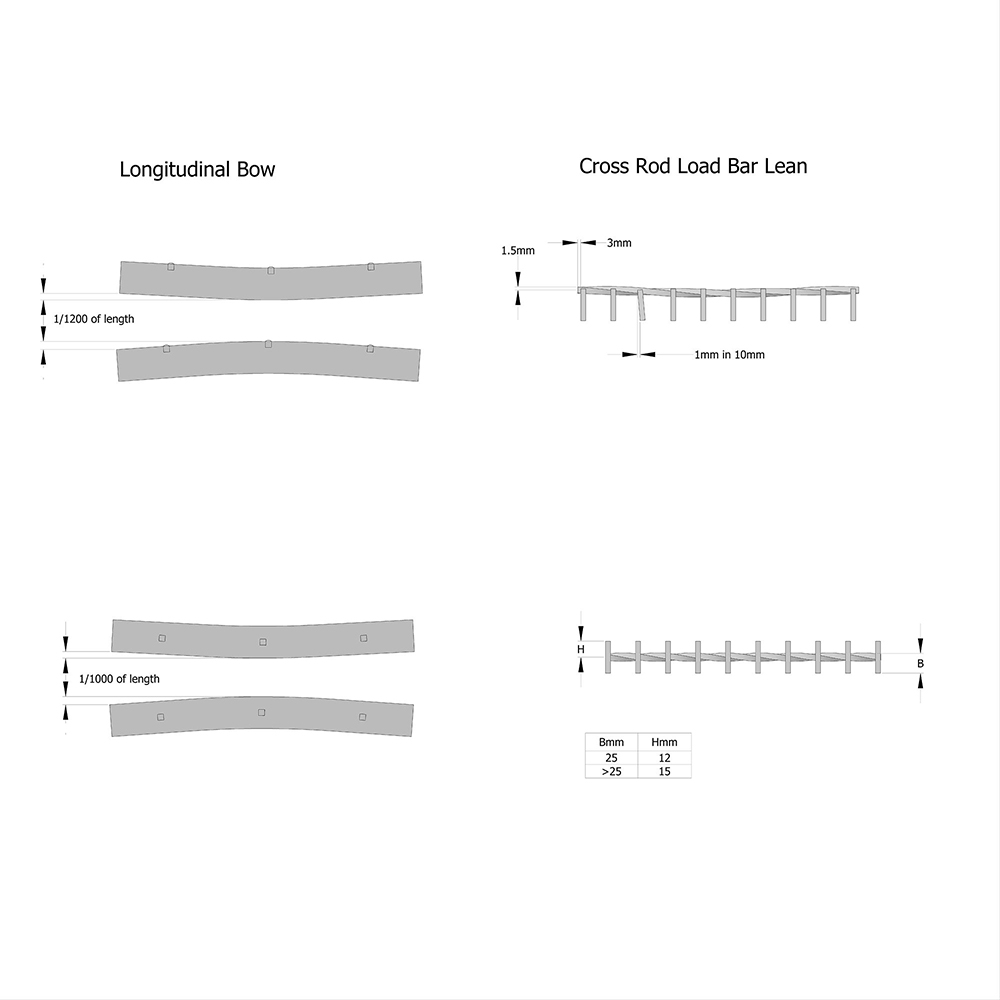

Render of steel mesh grating longitudinal bow.
Longitudinal Bow

Installation Note: Grating cantilevers up to 250 m in the loadbar direction are acceptable as long as the grating is securely anchored to the supports (not clips). Cantilevers in the crossrod direction are not acceptable.

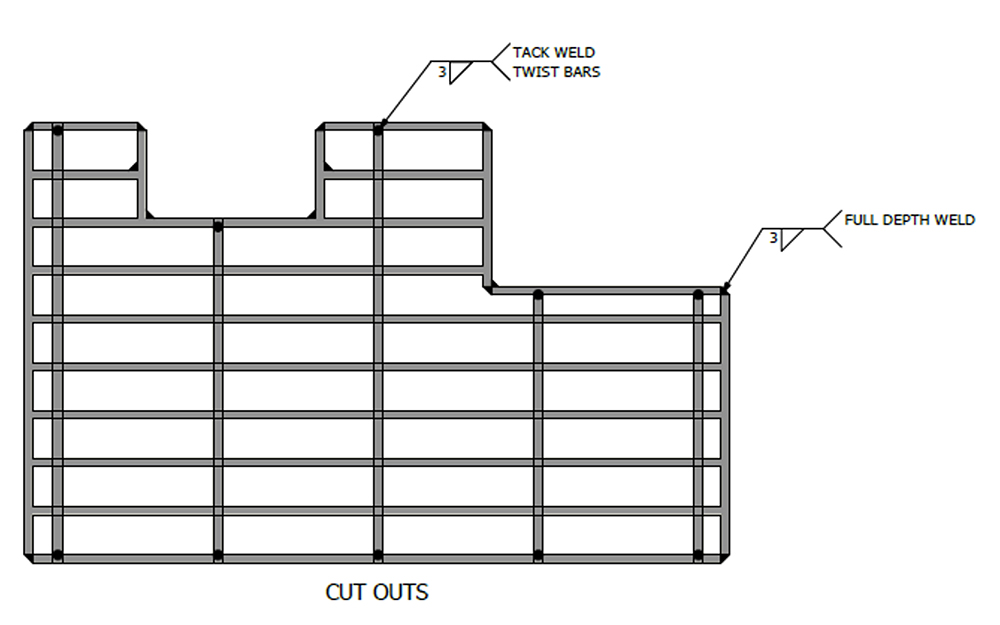

Render of steel mesh grating cutout.
Cutouts

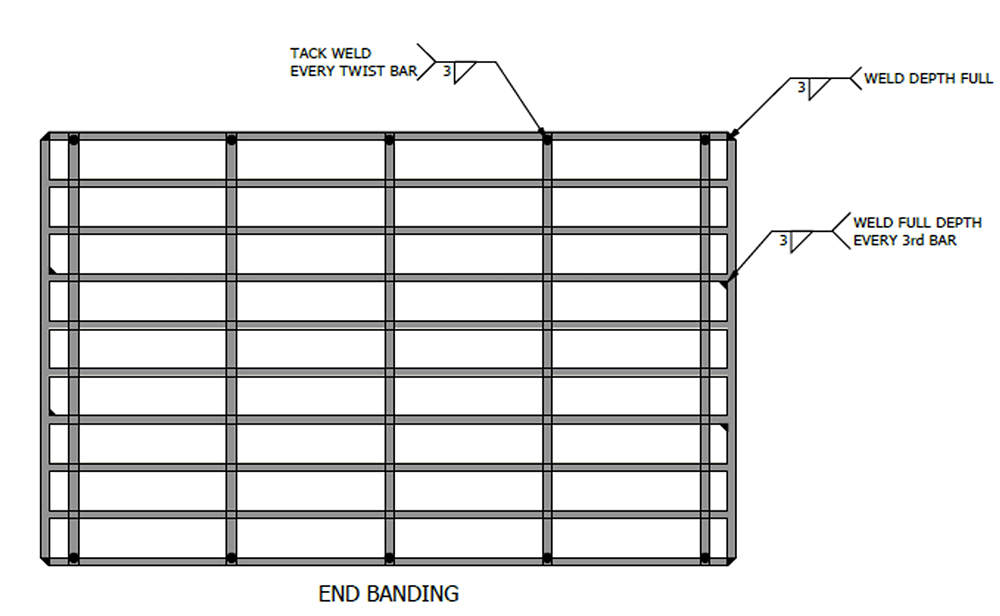

Render of steel mesh grating end banding.
End Banding

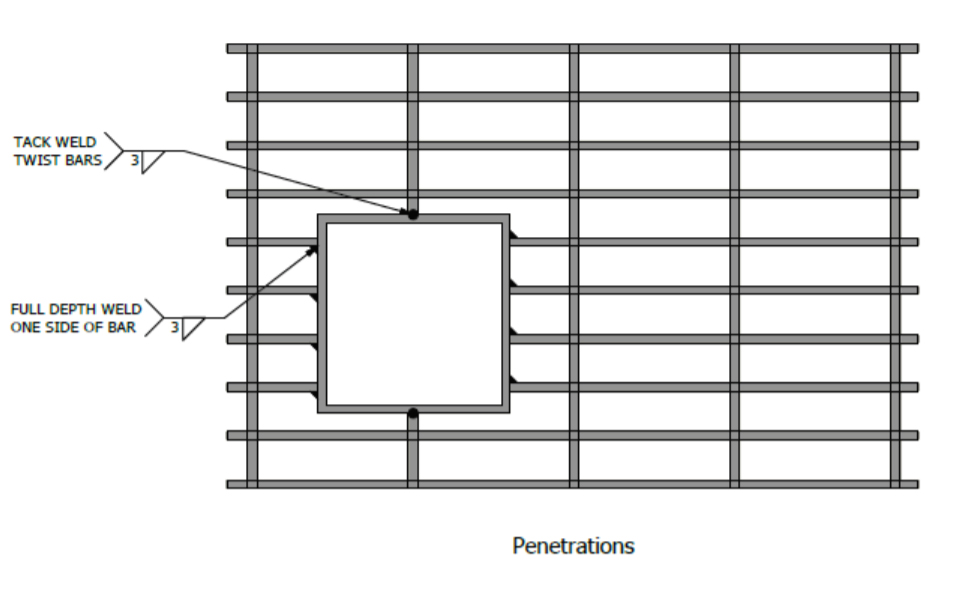

Drawing of steel grating manufacturing tolerance penetrations.
Penetrations
